UNIFIX connector: the solution for many purposes!

Securely connected even under load

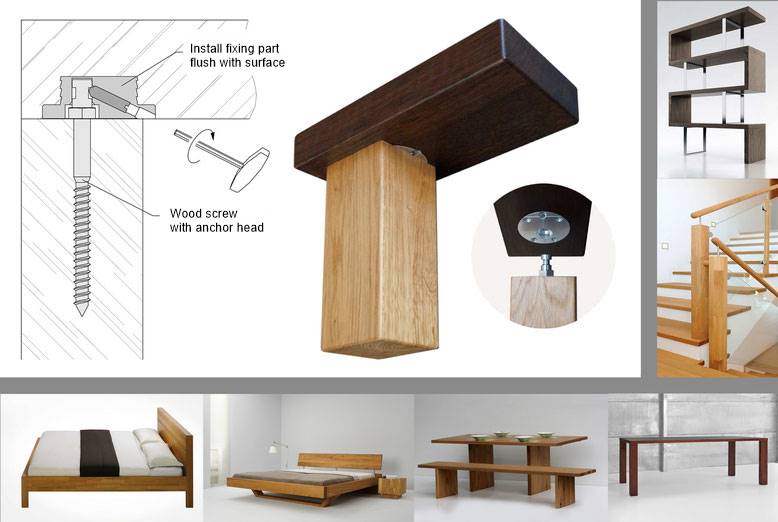

The universal connector allows for various connections to be realized on tables, beds, shelves, or sideboards – quickly, sturdily, and invisibly. The fitting consists of an anchor screw and a flush-mountable head piece. This solid aluminum turned part is milled into the supporting wood and screwed in place.

The anchor screw, available with both metric and wood threads, is inserted into the counterpart to be fastened. The connection of both parts is then made using an angled fixing screw. This screw engages with the cone of the anchor screw, providing extremely high tensile strength – pressing the fastened part firmly against the counterpart.

  • Invisible connection possibility
  • Universal application possibilities such as table leg attachment, stud connection, shelf bracket mounting, etc.
  • Easy, fast, and secure installation
  • Connection can be easily undone at any time
  • Flush-mount installation
  • The angled fixing screw applies tremendous tensile strength to the head of the anchor screw, firmly pressing the counterpart against it.

UNIFIX table foot mounting

Heavy duty connection for FURNITURE CONSTRUCTION

  • Extremely stable
  • Invisible use
  • Versatile use
  • Easy to mount
  • Flush mounting

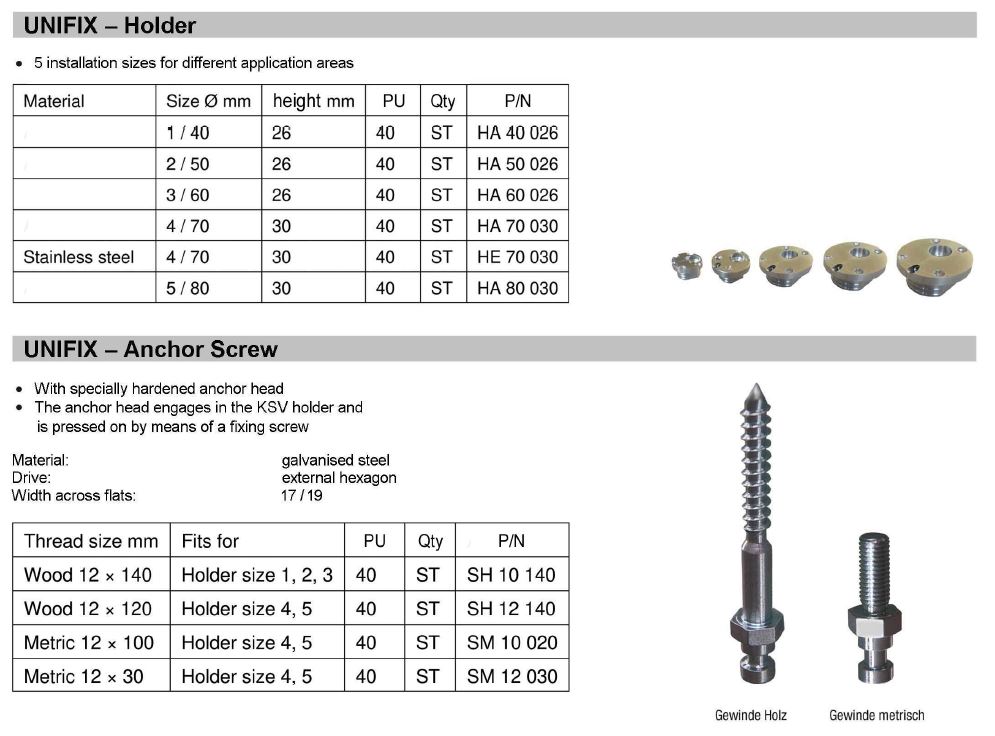

KSV UNIFIX Anchor screw

  • 5 installation sizes for different areas of application



Material Size Ø mm height mm PU pcs. Art. Nr.
bare aluminum
1 40 26 40 pcs. HA 40 026
bare aluminum
2 50 26 40 pcs. HA 50 026
bare aluminum
3 60 26 40 pcs. HA 60 026
bare aluminum
4 70 30 40 pcs. HA 70 030
Stainless steel 4 70 30 40 pcs. HE 70 030
bare aluminum
5 80 30 40 pcs. HA 80 030



KSV UNIFIX Anchor screw

  • With specially hardened anchor head
  • The anchor head engages in the KSV holder and is pressed on by means of a fixing screw.

Material: galvanised steel
Drive: external hexagon
Width across flats: 17 / 19

Thread Thread size mm Suitable for PU pcs. Article No.:
Wood 10 x 140 Holder size 1, 2, 3 40 ST SH 10 140
Wood 12 x 140 Holder size 4, 5 40 ST SH 12 140
Metric M10 x 20 Holder size 1, 2, 3 40 ST SM 10 020
Metric M12 x 30 Holder size 4, 5 40 ST SM 12 030

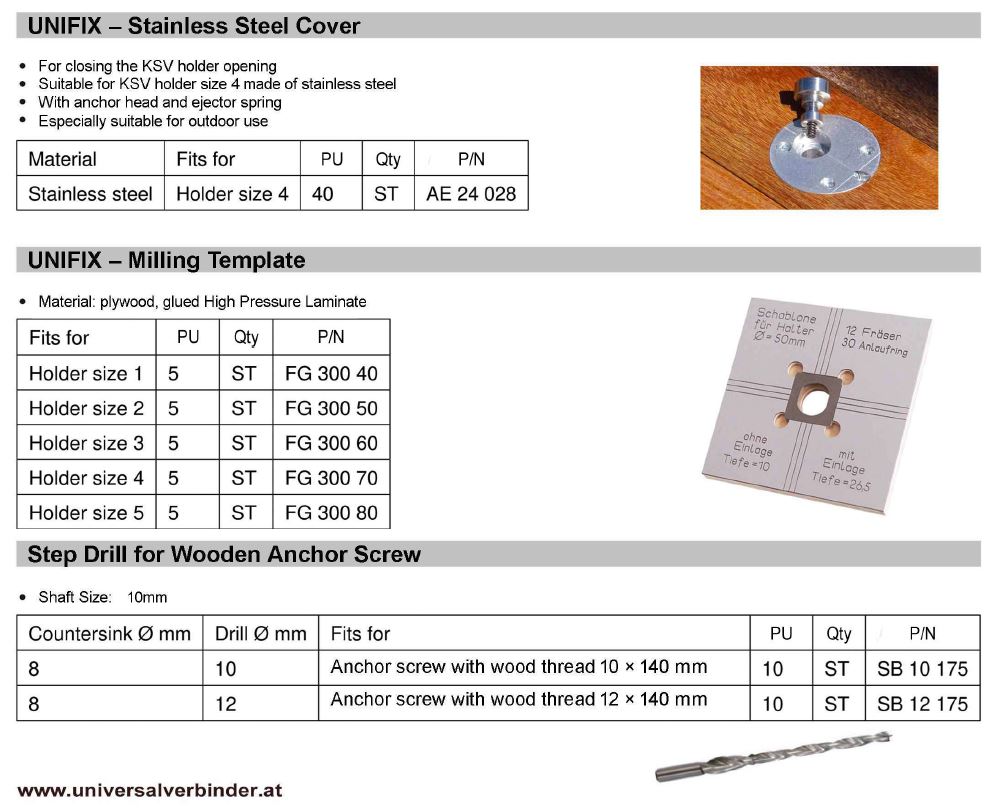

KSV UNIFIX - cover stainless steel

  • For closing the KSV holder opening
  • Suitable for KSV holder size 4 made of stainless steel
  • With anchor head and ejector spring
  • Especially suitable for outdoor use

Material Suitable for VU pcs. Article No.:
Stainless steel Holder size 4, Stainless steel 40 ST AE 24 028



KSV UNIFIX - milling template

  • Material: plywood, glued Resopal

appropriate
VPE ME Art. Nr.:
Holder Size 1 5 ST FG 300 40
Holder Size 2 5 ST FG 300 50
Holder Size 3 5 ST FG 300 60
Holder Size 4 5 ST FG 300 70
Holder Size 5 5 ST FG 300 80

Step drill for wood anchor screws

  • Shaft Size:   10mm



countersink

mm

drill mm appropriate VPE ME Art. Nr.:
8 10 KSV

Anchor screw with wood thread

10 x 120/140mm

10 ST SB 10 175
8 12 KSV

Anchor screw with wood thread

12 x 140 mm

10 ST SB 12 175





KSV UNIFIX - milling template

Material: Plywood, Resopal glued

Suitable for PU pcs. Article No.:
Holder size 1 5 pcs. FG 300 40
Holder size 2 5 pcs. FG 300 50
Holder size 3 5 pcs. FG 300 60
Holder size 4 5 pcs. FG 300 70
Holder size 5 5 pcs. FG 300 80







Step drill for wood anchor screw

Shank size: Ø 10mm

Shank Ø mm Drill Ø mm Suitable for PU pcs. Article No.:
8 10 KSV Anchor screw w. wood thread 10 x 140 mm 10 ST SB 10 175
8 12 KSV Anchor screw w. wood thread 10 x 140 mm 10 ST SB 12 175
