ab Plattenstärke 18mm
INDUFIX connector
With the INDUFIX connector, table legs or table sides can be securely fastened. This connector is suitable for table tops with a thickness of at least 18mm. It is also ideal for particle board as a base plate.

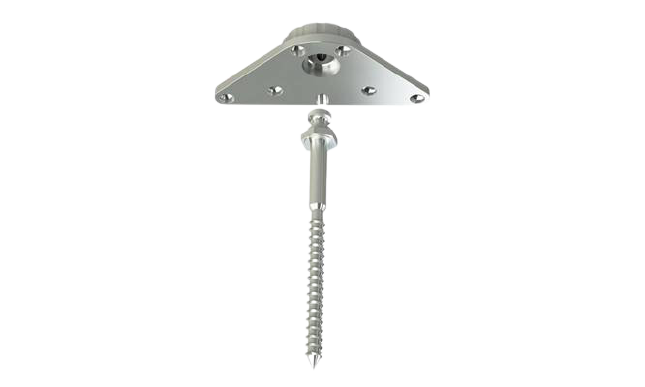

The connector consists of an anchor screw and a fastening part embedded in the table top.
The anchor screw is screwed into the part to be attached. Both parts are then joined together and fixed with a fastening screw.
- extremely stable
- twist-proof
- simple
- flush with the surface
- stable
- self-explanatory
- inexpensive
- universal
The inexpensive connector made of cast aluminium can be installed in the tabletop in various ways.
flush mounted
from panel thickness 25 mm
ideal for table leg supports
semi-deep installation
from panel thickness 18 mm
Step drill for wood anchor screw
Shank size: Ø 10mm
| Shank Ø mm | Drill Ø mm | Suitable for | PU | pcs. | Article No.: |
| 8 | 12 | KSV Anchor screw w. wood thread 10 x 140 mm | 10 | pcs. | SB 12 175 |
