W-Gratleiste

MINIGRAT
Holzdesign Kitzmüller GmbH

PLANOGRAT: the new burr strip for solid wood panels

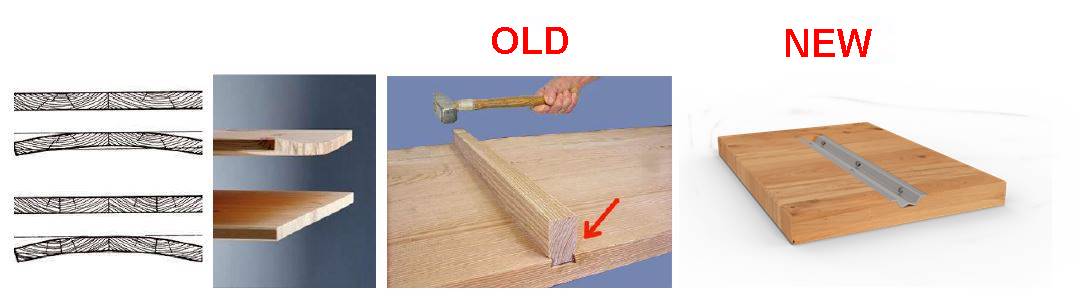

W-Gratleisten braces keep solid wood table tops (19–50 mm thick) permanently flat. The steel profile is inserted into the milled recess of the table top and fixed with Ø5 mm countersunk screws.

  • reliably protects solid wood tabletops from tension
  • easy installation thanks to angled screw mounting
  • low installation depth of only 14 mm
  • no milling of the table edge required
  • flush-mounted installation – ideal for extension tables

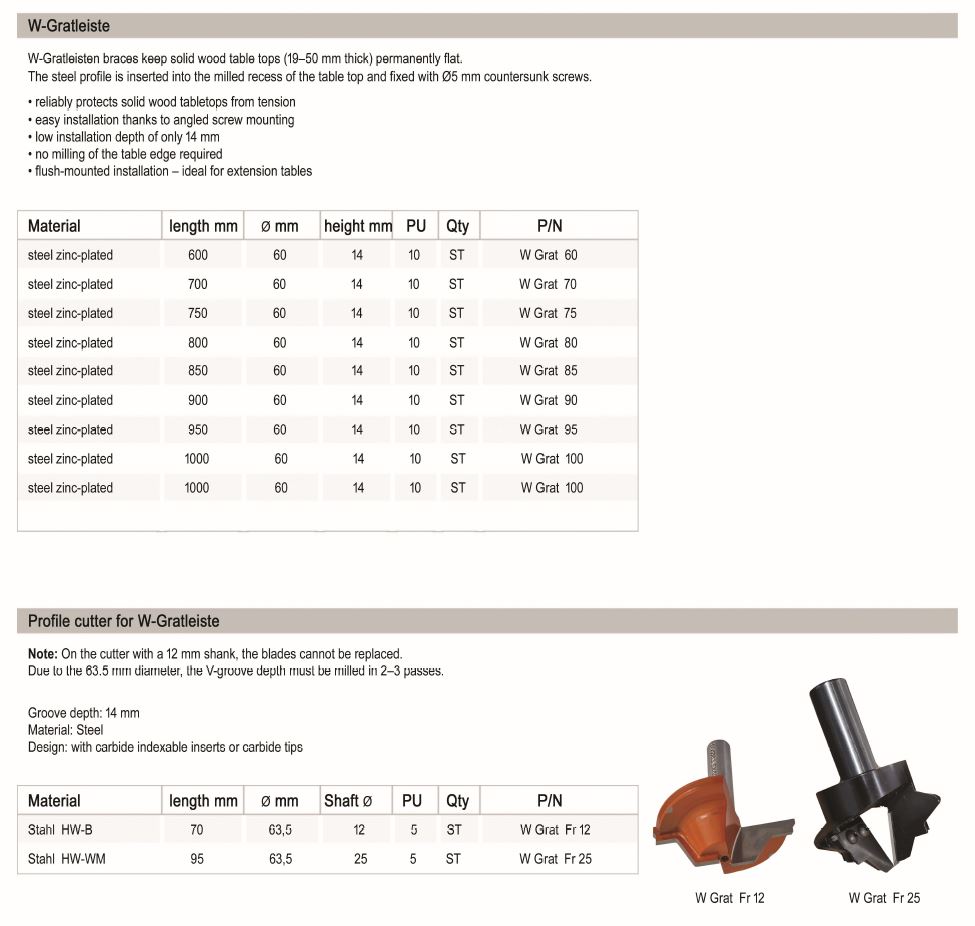

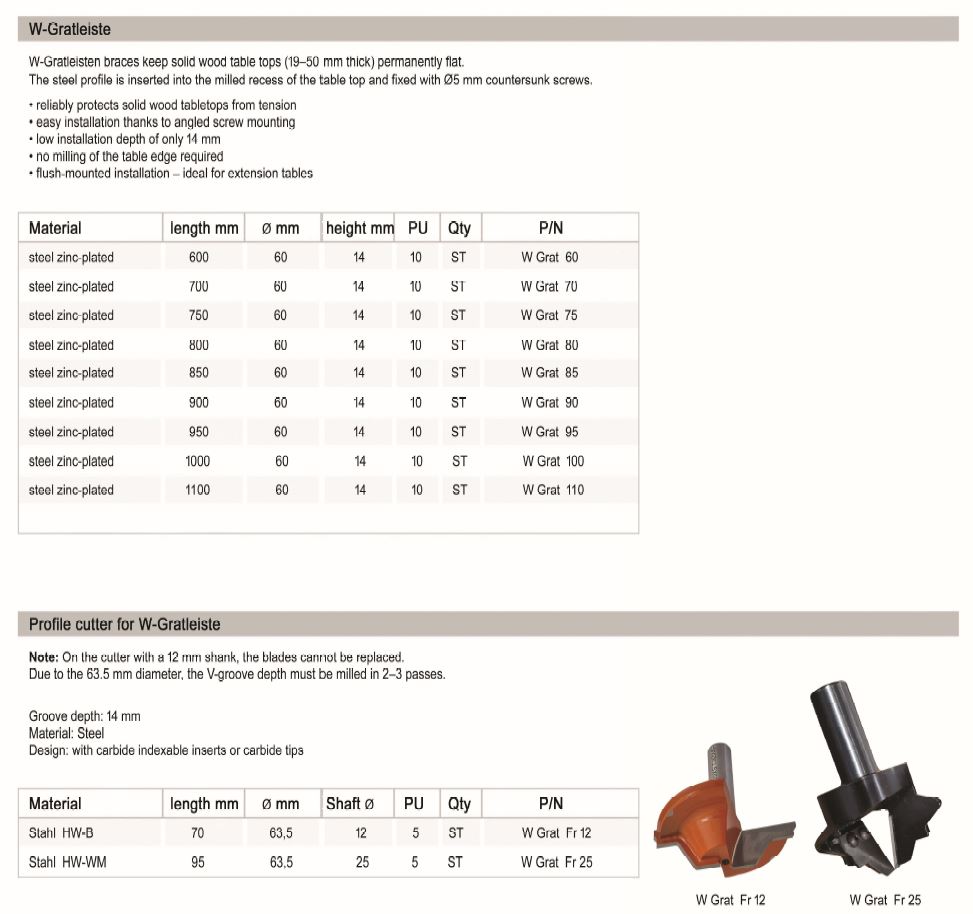

Material: steel zinc-plated

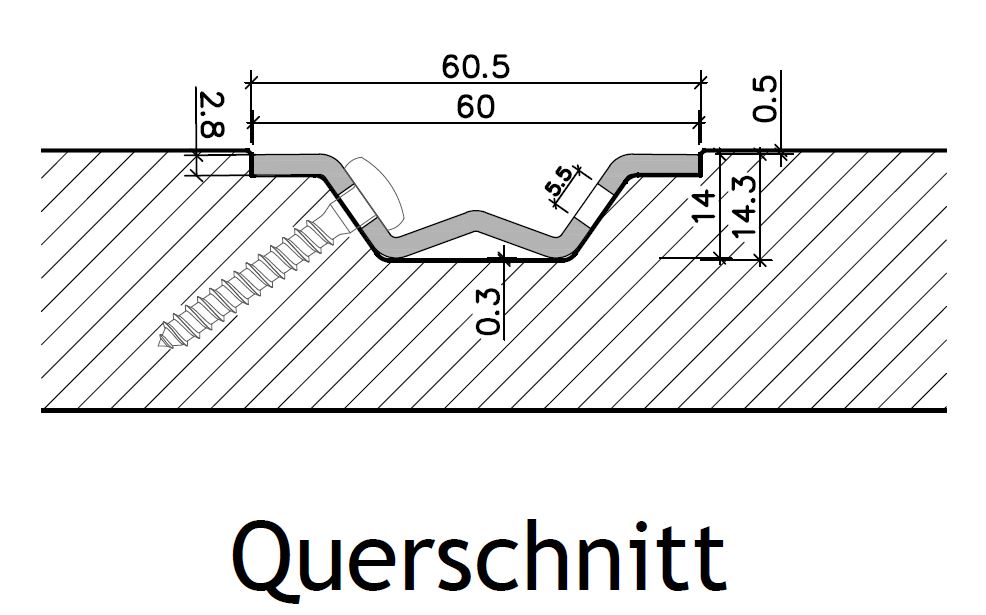

Dimensions: length 600–1100 mm, width 60 mm, groove depth 14 mm

Standard lengths

* 600 mm * 800 mm * 950 mm
* 700 mm * 850 mm * 1000 mm
* 750 mm * 900 mm * 1010 mm
